CR 25.0 Digitizer AGFA

12.05.2019

CR 25.0 Digitizer AGFA

CR 25.0 IS A MULTI-APPLICATION DIGITIZER, BENEFITING FROM THREE DIFFERENT IMAGE RESOLUTION MODES.

Broad range of applications

CR 25.0 is a highly versatile digitizer. It offers an ideal solution for any decentralized CR environment. CR 25.0 can handle General Radiology, Orthopaedics, Dental and Paediatrics. CR 25.0 is also a perfect complement to existing centralized CR systems.



Full data

CR 25.0 reads imaging plates at a standard resolution of 6 pixels/mm. 10 pixels/mm high resolution capability is available for all image plate sizes. 20 pixels/mm resolution is available for dedicated 18 x 24 cm and 24x 30 cm mammography and extremities cassettes and plates.

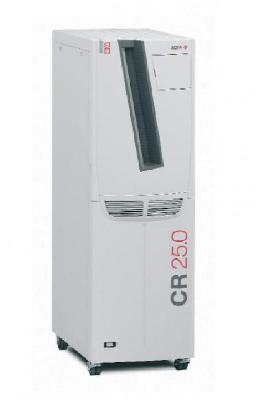

Small footprint

The small CR 25.0 footprint allows it to be placed easily at any location. Designed with ease of use in mind, it requires only a standard wall-outlet. Together with a universal X-ray shielding, optionally available, theCR 25.0 can be used inside the X-ray room. In combination with a mobile kit, it is also fit for mobile use (vans, ships, military,...).

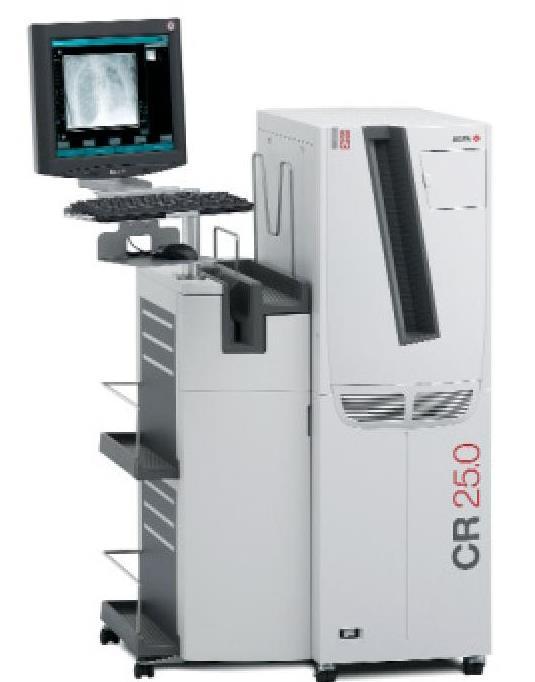

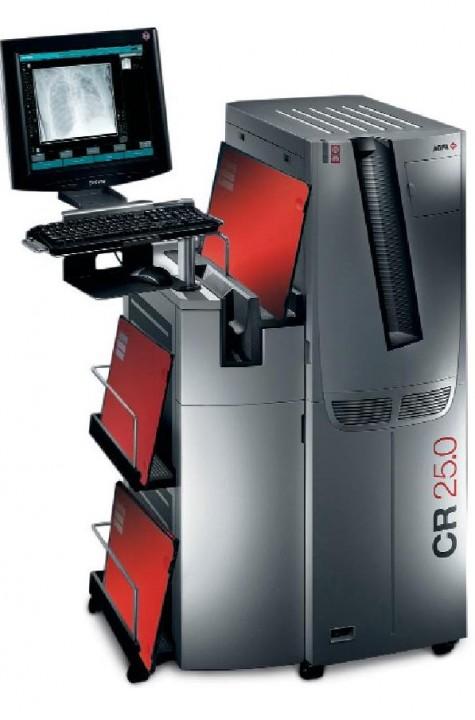

Universal CR User Station

 Optionally, a fully integrated CR User Station is available. The CR User Station is suitable for all CR environments:
- Decentralized CR
(Surgery, Intensive Care Unit, Emergency Room,...) -Personal CR
- In-room CR solutions.
Its modular and ergonomic design includes:
- Cassette identification functions -Space for:
•Workstation for image handling, processing and dispatching
• Monitor, network switches and UPS
• Cassette storage.
An economical way to go digital
CR is compatible with all existing X-ray systems allowing X-ray departments to go digital without significant additional investments and workflow adaptations.




CASSETTE SIZES



ACCEPTED CASSETTE SIZES	SPATIAL RESOLUTION	PIXEL MATRIX SIZE
Standard resolution
35 x 43 cm (14 x 17 in)	6 pixels / mm	2320 x 2826
35 x 35 cm (14 x 14 in)	6 pixels / mm	2320 x 2320
High resolution
35 x 43 cm (14 x 17 in)	10 pixels / mm (option)	3480 x 4240
35 x 35 cm (14 x 14 in)	10 pixels / mm (option)	3480 x 3480
35 x 43 cm	10 pixels / mm	2020 x 4240
(automatic collimation
to 21 x 43 cm)
24 x 30 cm	10 pixels / mm	2320x2920
18 x 24 cm	10 pixels / mm	1720 x 2320
15 x 30 cm	10 pixels / mm	1420 x 2920
8 x 10 in	10 pixels / mm	1950 x 2460
10 x 12 in	10 pixels / mm	2460 x 2970
Mammography and extremities
24 x 30 cm	20 pixels / mm	4760 x 5840
18 x 24 cm	20 pixels / mm	3560 x 4640

TECHNICAL SPECIFICATIONS

GENERAL



Digitizer type

•Single cassette feed

•Throughput: up to 71 plates/h (depending on size and application)



LCD display

•Machine status and error conditions



Greyscale resolution

•Data acquisition: 12 bits/pixel

•Output to processor: 12 bits/pixel

Dimensions and weight

•(W x D x H): 45 x 75 x 141 cm (17.7 x 29.5 x 55.5 in)

•Depth at cassette slot: 73 cm (28.7 in)

•Weight: Approx.: 270 kg



Environmental conditions

• Temperature: 20 - 30°C (68 - 86°F)

• Humidity: 15 - 75% RH

• Magnetic fields: max. 12.60 u.T in conformance with EN 61000-4-8: level 3

• Rate of change of temperature: 0.5°C/minute (0.9°F)

Environmental effects

• Noise level: max. 65 dB (A)

• Heat dissipation: standby 250 W, max. 1610 W





SAFETY



Approvals

• TuV, UL, cUL, CE



Power

• 230 - 240 V/50-60 Hz Standby 250W,

max 1610W, 16A fuse

• 120V/60Hz(USA)

Standby 250W, max 1440W, 15A fuse

• 100V/60Hz (Japan)

Standby 250W, max 1500W, 15A fuse

Transport details

• Temperature: -25 to +55°C (-4 to 131°F),

-25°C for max. 72 hours, +55°C for max. 96 hours

• Humidity: 10 - 100% RH
