Digital x-ray receptor.
17.03.2015
Digital x-ray receptor.
|
Technical specification | ||
|
Receptor Type |
Multiple photo-diode sensors array with optical coupling |
|
|
Sensors Number |
48 |
|
|
Conversion Screen Type |
Gd2O2S:Tb |
|
|
Field of view |
385 x 385 mm |
|
|
Pixel Area |
3000 x 2320 with binning 1 x 2 3000 x 4640 full resolution mode (1 x 1) |
|
|
Screen Pixel Pitch |
133x86um2 |
|
|
Spatial Resolution |
Full resolution mode: 4,0 lp/mm |
|
|
Contrast sensitivity |
< 1% at 1mR |
|
|
Dynamic Range |
> 200 |
|
|
Image Acquisition Time |
< 3 sec |
|
|
Image Correction Time |
< 4 sec |
|
|
Geometric Distortions |
< 0,5% |
|
|
Brightness Non-Uniformity |
< 1% of full scale maximum after sensitivity correction inside active area |
|
|
Scan Method |
Progressive |
|
|
A/D Conversion |
14 bits |
|
|
Exposure Window |
1..1000 msec |
|
|
Non-responding Pixels Inside field of view |
None |
|
|
Data Output |
USB High Speed |
|
|

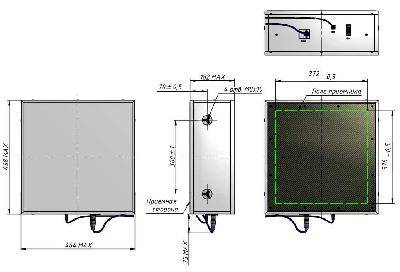

Mechanical specification | ||
|
Size |
468(v) x 464(h) x 182(d) mm |
|
|
Weight |
18 kg |
|
|
Housing Material |
Aluminum |
|
|
Screen Protection Material |
Carbon fiber |
|
|
Sensors protecting material |
Lead and Lead glass |
|
|
Mounting Provisions |
Mounting holes at lateral covers 4 threads ANSI Metric M profile M8 |
|
|
|
|
|
|
X-Ray generator interface | ||
|
X-ray exposure auto detect |
Present |
|
|
Automatic Exposure Control |
External |
|
|
Handshaking (optional) |
Via software or contact closures |
|
|
Connector (optional) |
15-pin D-subminiature |
|
|
|
|
|
|
Primary Image Processing | ||
|
Geometric Distortion Correction |
Software implementation, based on test- objects patterns |
|
|
Non-Uniformity Correction |
Full range, based on series of flat-field test objects images for the given output brightness levels |
|
|
|
|
|
|
Receptor Power Supply | ||
|
Power Input |
24 V DC |
|
|
Consumption |
65 W (max) |
|
|
|
|
|
